Chocolate Melter

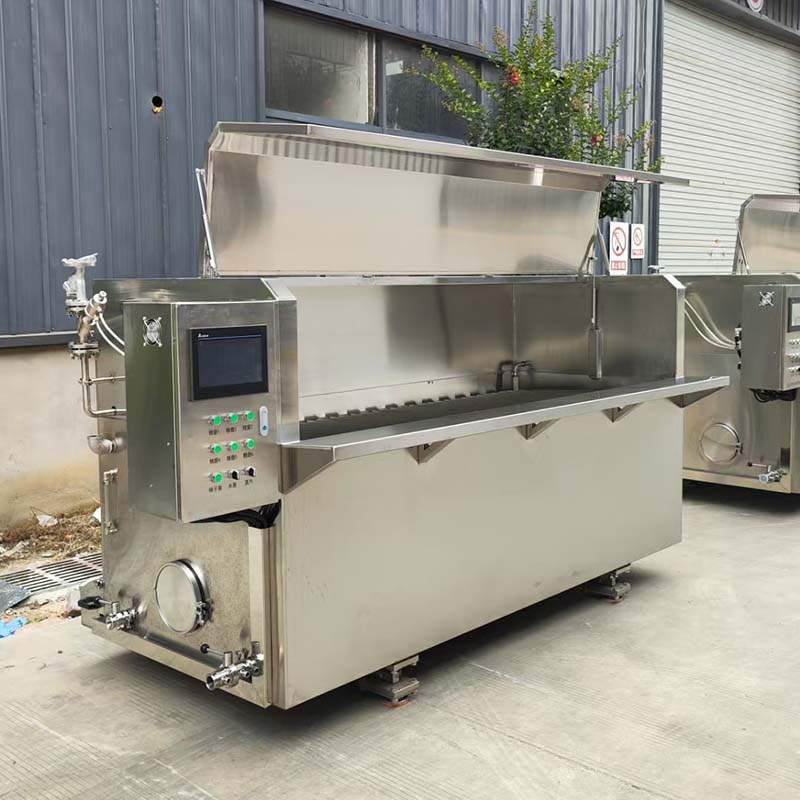

Fat melting tank is one of the main machines in chocolate production and it is not only used for melting cocoa butter, but also palm oil, CBS, CEB,CBR etc. IIt’s designed as double jkt and with hot water pipe inside the tank. Depends on capacity, we have cylinder shape and rectangle shape. With double jkt pipeline and chocolate pump, it can reach automatic feeding and escape from raw materials contamination.
Features：
- ● Material which touched with food is food grade 304 stainless steel.
- ● Hot water circulation is optional.
- ● For 500L and 1000L capacity, it has three independent cavities for different fat/butter.
- ● It's available no matter customer needs 1000L/batch or 1000L/hour.
Product advantages：

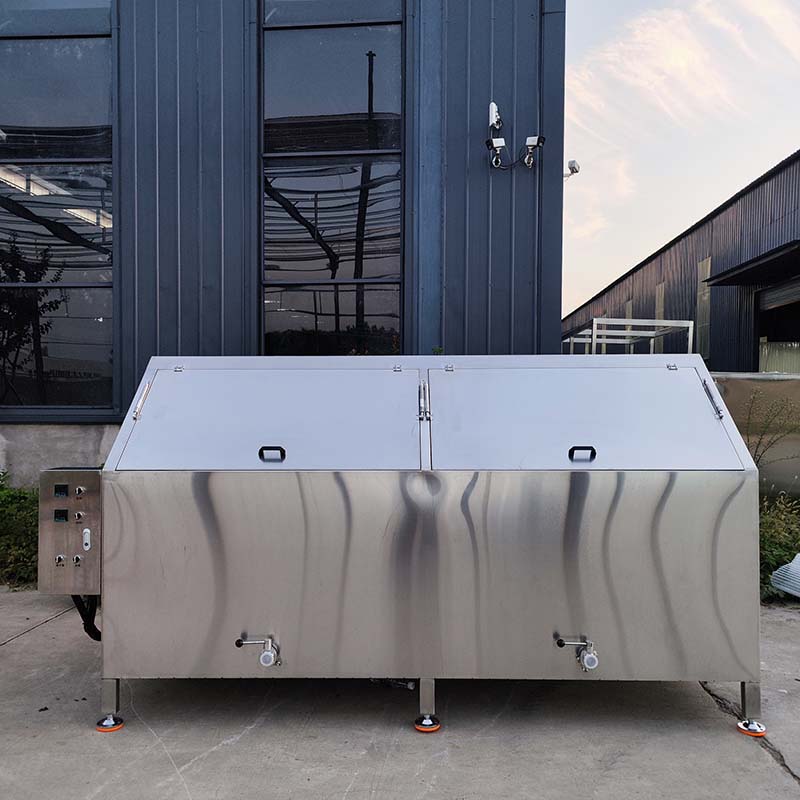

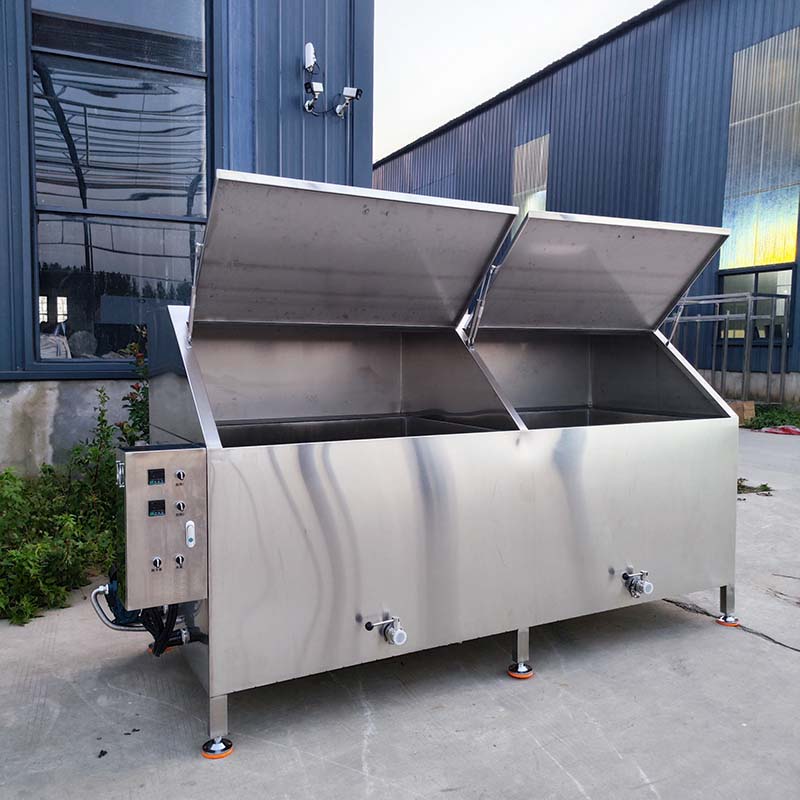

- ★ Fat melting tank is a basic machinery for chocolate and confectionery production. Our fat melting tank has three versions depends on capacity. The 1st version is round, which appearance is similar with chocolate holding tank. The 2nd version is rectangle shape and with three independent cavities. The advantage is it can be used to melt or store three different oil/fat at the same time.

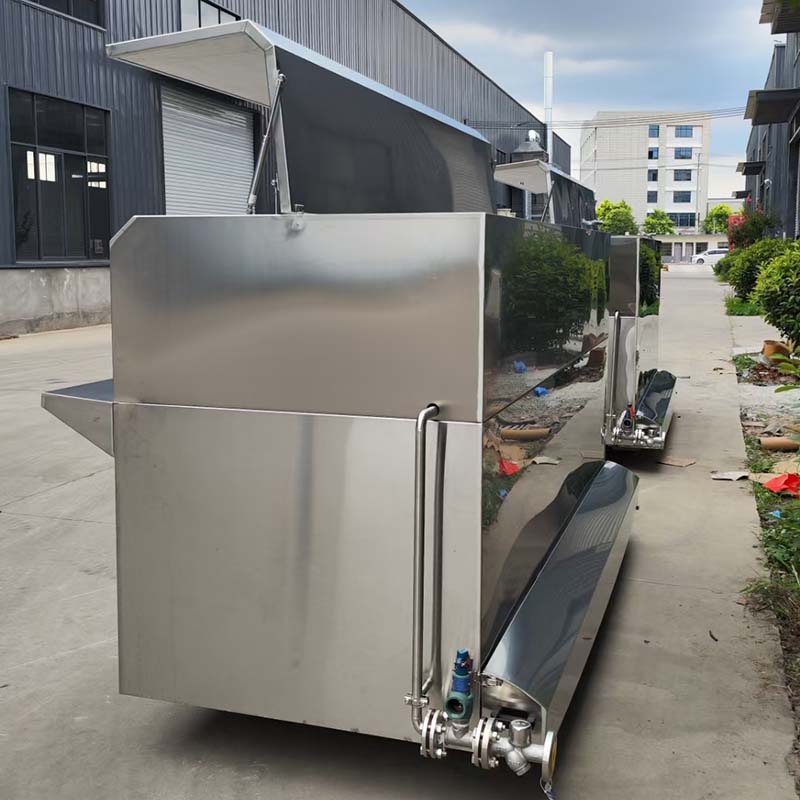

- ★ The 3rd version is rectangle or square. But the inside design is different from 1st and 2nd version. Compared with 1st and 2nd version, it’s rectangular hot water pipe inside the tank. The advantage is it has a larger heated area, so the cocoa butter is melted more efficiently and in shorter time.

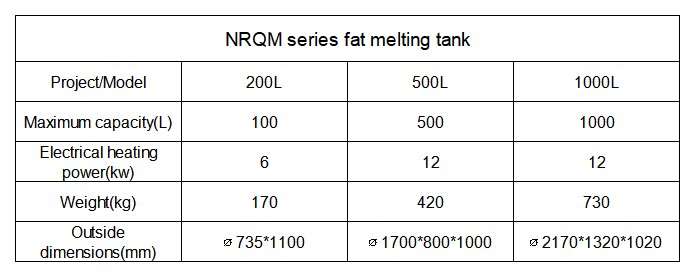

Product parameters：
