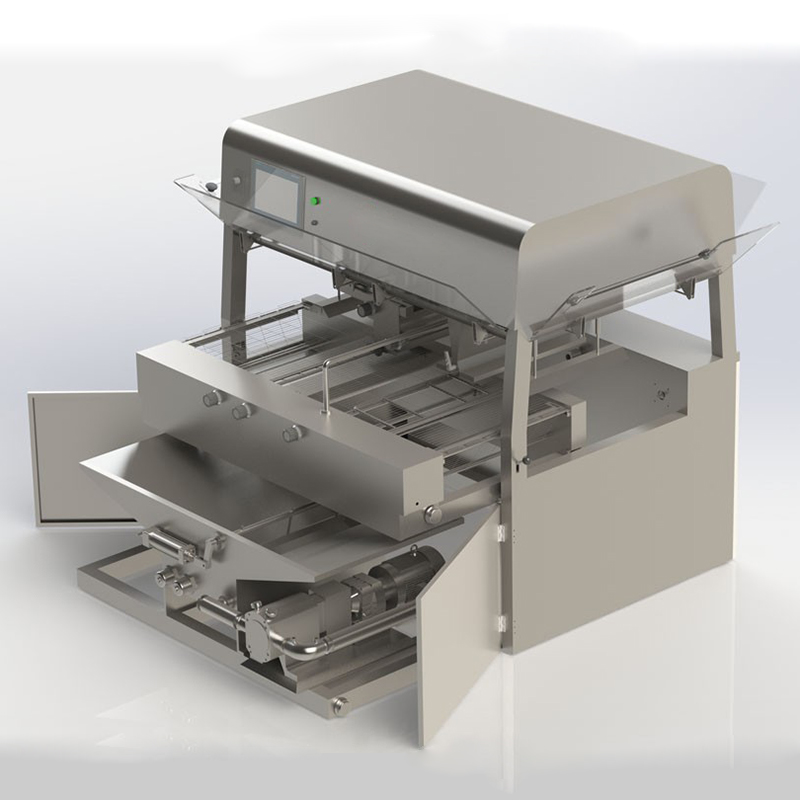

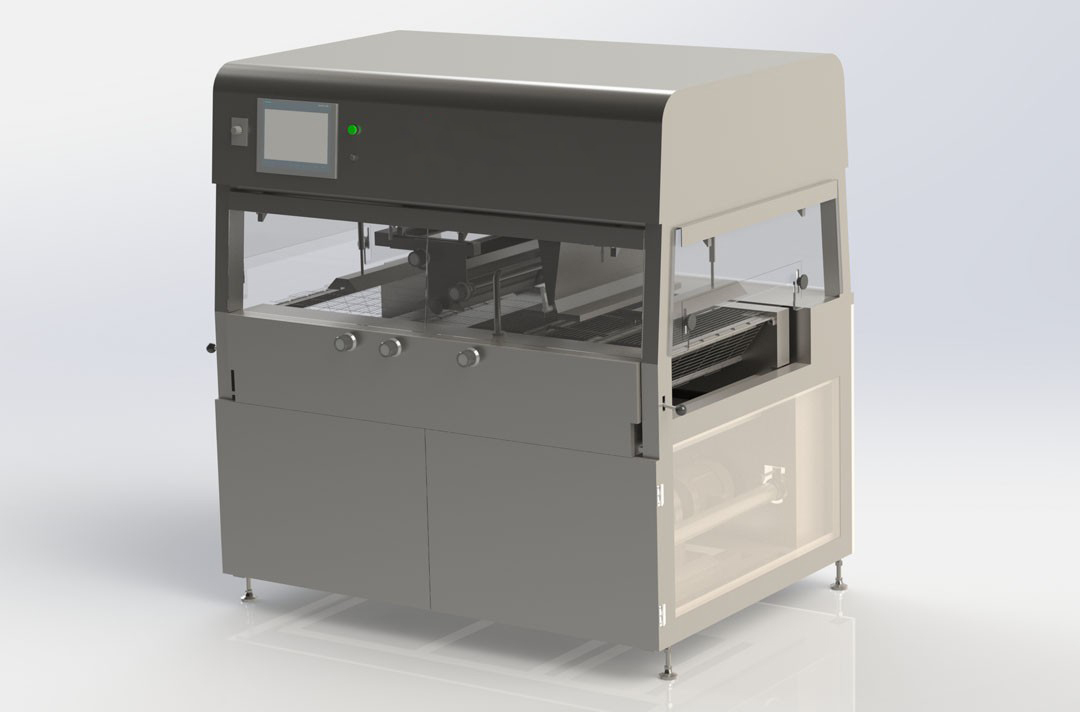

Small Chocolate Enrober Chocolate Coating Machine
Chocolate Enrobing machine is made with belt width from 400, 600, 800, 900 ,1000 and 1200 mm and designed for all common enrobing tasks with tempered as well as non-tempered chocolate.
Product Description:
NEWRO Chocolate Enrobing machine is made with belt width from 400, 600, 800, 900 ,1000 and 1200 mm and designed for all common enrobing tasks with tempered as well as non-tempered chocolate.
▶ Both the material tank and mesh belt can be pulled out for cleaning, to facilitate the coating of different colors of chocolate.
▶ Standard cooling tunnel is in single-layer structure (direct cooling), custom cooling tunnel available in double or triple layer construction (indirect cooling).
▶ Compressor American brand Emerson Copeland, expansion valve with the German brand Danvers. Three compressors with axial flow fans, the cooling tunnel is divided into three temperature zones, alternating defrosting, to avoid the refrigerator due to frost not cooling. The air outlet has a heating dehumidification pipe, the conveyor belt uses food-grade PU belt, and the net belt uses 304 food-grade net belt.
▶ Belt with automatic tightening structure. All belt rollers, clamping rollers, drive rollers and correction rollers are easy to remove and easy to clean. Double sensors are used on both sides of cooling tunnel correction to avoid belt damage and extend service life.
▶ Siemens PLC Control, bottom coating or full coating is flexibly controlled. Chocolate Enrober can control coating thickness and quantity more better, making coating more homogeneous.
▶ The chocolate paste in the material tank is equipped with a liquid level sensor, and the signal is output to the front end chocolate pump. The double-layer jacket of the material tank is heated by water, and the heating pipe is made of 304 stainless steel.
▶ The material tank is designed with inclined grooves so that the coated chocolate paste does not accumulate. All pipe joints are quick opening joints, which are convenient for disassembly. The O-rings and gaskets used at the joints meet the requirements of food grade materials.
▶ There is a whole cover above the head of the coating machine, and there is PC glass on the other four sides, which can prevent dust and observe the coating condition of the product through this window.

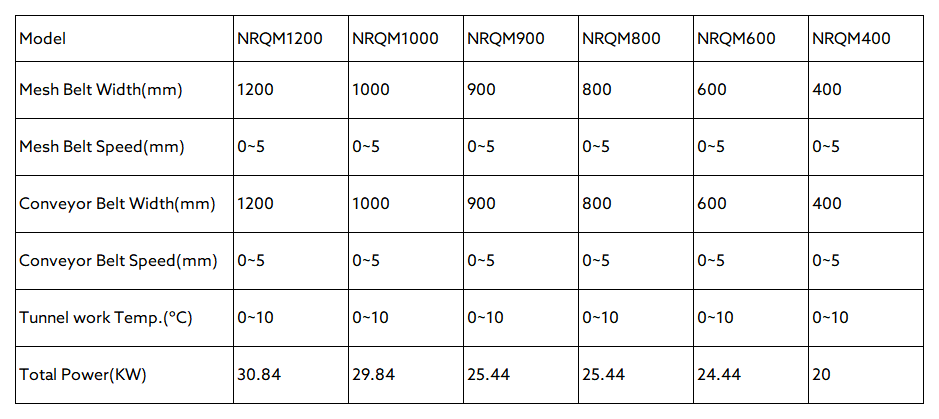

Technical Parameter:

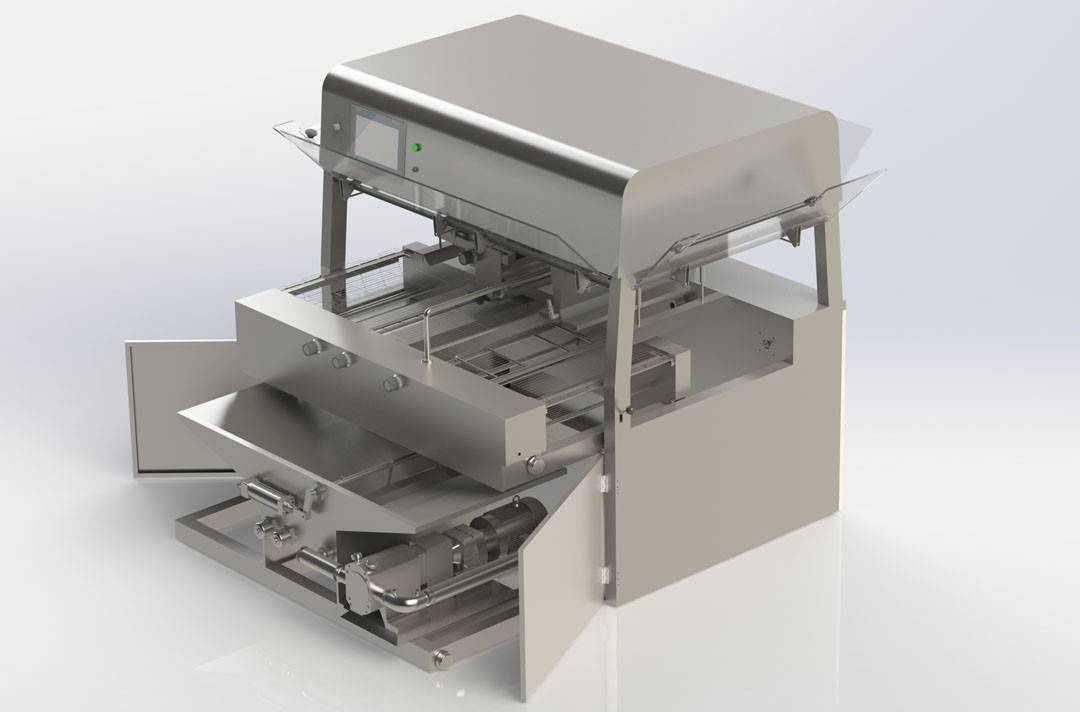

Product Details:
Product Application:
